Can one machine produce a perfect lens mold surface, continuously? I have been in the optical and mold making business for twelve years and I know the importance of this subject. I’ve seen some great polishing results with CNC polishing machines and some terrible ones so I can vouch for how important they are.
Here you can find information about computer numerical control (CNC) polishing machines, how they work on optical, cavity and form molds, the state of the market and some tips to choose the best one. I will also address the questions that purchasers often have.

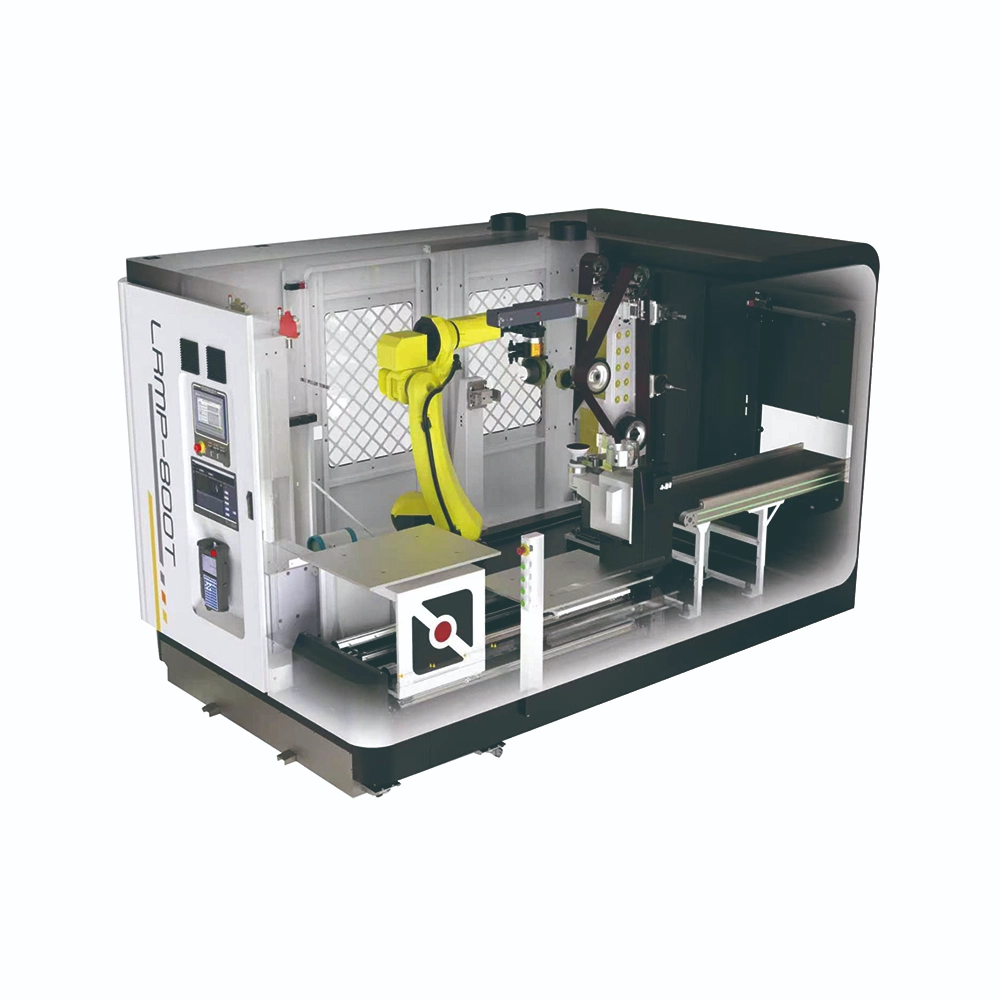

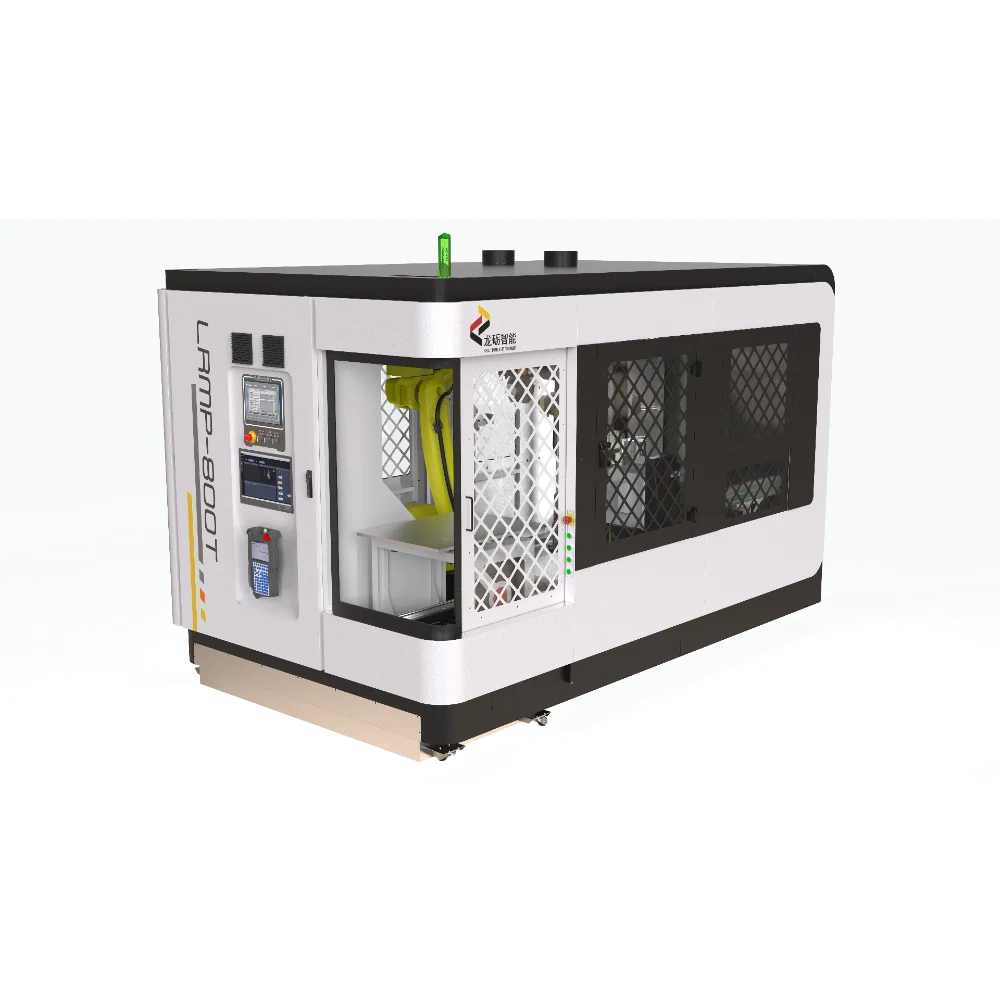

What Is a CNC Polishing Machine and How Does It Work?
One such instrument is a computer-controlled CNC polishing machine. Metal, glass and plastic molds are ground smooth on their surfaces. The machine is encrypted. This guarantees that all parts are treated equally. There’s no room for human error. These devices are also used in medical equipment, as well as optical and automotive components. The program controls pressure, speed and wear.
Automatic computer numerical control polishing machines can operate continuously for long periods of time. They offer a degree of surface smoothness that is measured in Ra. A lower Ra will be a smoother surface. For this you need a very low value for lens moulds.
CNC Polishing Machine: Core Technical Specifications Compared
| Feature | Entry-Level | Mid-Range | High-End |
| Surface Roughness (Ra) | 0.05–0.1 µm | 0.01–0.05 µm | < 0.005 µm |
| Axis Control | 3-axis | 4–5 axis | 6–7 axis |
| Spindle Speed | 1,000–8,000 RPM | 5,000–20,000 RPM | Up to 60,000 RPM |
| Best Use | Basic mold polish | Cavity and form molds | Optical lens molds |
| Automation | Semi-auto | Fully auto | Smart adaptive |
How Do CNC Glass Polishing Machines Work on Optical Lens Molds?
Can optical lens molds be polished properly with a simple tool? That’s not correct. For optical molds the surface roughness must be lower than 1 nm. That’s good. Yeah. This job requires a CNC glass polishing machine to do the job. Ideal heat controlled spindle and a sturdy frame. Uses low pressures and glass safe abrasives. Even the smallest error might cause light to scatter in the finished lens.
Such care is required for medical scopes, automobile headlights, and camera lenses. Also, the company that manufactures CNC glass polishing machines should keep its workplace neat and clean. Results are affected by dust and temperature.
What Affects Optical Mold Polish Quality?
The right equipment alone is not enough to guarantee a high quality optical finish. The spindle, abrasive and tool path should work together.
Key Factors for a Good Optical Polish:
- Choose an abrasive grit that will work well with the material of your mold.
- Overlapping tool paths for a flat surface
- The spindle runout must not exceed 0.5 µm.
- Be sure to use the proper coolant to avoid heat damage.
Optical Polishing Sector Comparison: Glass vs. Steel Molds
| Parameter | Glass Mold | Steel Mold | Carbide Mold | Ceramic Mold |
| Target Ra (µm) | < 0.001 | 0.005–0.02 | 0.002–0.01 | 0.001–0.005 |
| Tool Wear | High | Medium | Low | Very Low |
| Cycle Time | Long | Medium | Medium | Long |
| Machine Cost | High | Moderate | High | Very High |
Pros and Cons of CNC Glass Polishing for Optical Molds
Pros:
- Gets very smooth results, < 1 nm
- Consistent results all around
- Operators require less skill
- For surfaces with high curvature
Cons:
- Has more than the standard polishing stations
- Requires a controlled environment or clean room
- Setup takes longer for smaller tasks.
- The price goes up to cut glass.
CNC Glass Polish Machine: Supplier Type Comparison
| Supplier Type | Lead Time | Custom Options | Price | Support |
| Factory Direct | 6–10 weeks | High | Low–Medium | Strong |
| Distributor | 2–4 weeks | Limited | Medium–High | Moderate |
| Custom Builder | 10–20 weeks | Full | High | Variable |
| Used Reseller | Immediate | None | Low | Poor |
In short, when you buy a CNC glass polishing machine, you may get more choices and save money buying directly from the source. Distributors are faster but more expensive. Special forms can be built to order. Using old equipment for precision work is a risky business.
What Makes a CNC Polish Machine Right for Cavity & Form Molds?
Can deep-cavity and smooth-form molds be polished by the same CNC machine? The key is to rely on the machine. A cavity mold is a deep, closed mold. We need equipment that can get in without damaging the walls. Forms molds are open and curved. They have to be passed quickly and smoothly. One task may not lend itself to a custom made CNC polishing machine.
Either job can be handled by modern 5-axis machines. Hybrid CNC polishing machines are already on the market today. Choose according to the type of mold you are using and the number of parts you are making.
Cavity Mold Polishing- Reaching Deep Areas
Polishing deep cavity molds is a tough job. The instrument requires long reach inside without touching the wall. The solution is a CNC polish machine that runs automatically and has long reach spindles.
- Tools with long reach can reach difficult-to-access places
- Multi-axis control to avoid tool accidents
- The adaptive pressure is independent of the shape of the wall, maintaining contact.
- Accelerating simultaneously in difficult environments
- In-process inspections minimize rework.
CNC Polishing Machine Type vs. Mold Application
| Machine Type | Cavity Depth | Shape Complexity | Surface Quality | Best Use |
| 3-Axis CNC | Shallow < 50mm | Low | Ra 0.05 µm | Flat lens blanks |
| 5-Axis CNC | 50–150mm | Medium | Ra 0.01 µm | Injection molds |
| 7-Axis CNC | Deep > 150mm | High | Ra 0.002 µm | Aspheric lens molds |
| Robotic CNC | Any depth | Very High | Ra 0.005 µm | Freeform optics |
Cavity Mold vs. Form Mold
| Criteria | Cavity Mold | Form Mold |
| Shape | Deep and enclosed | Open and curved |
| Tool Access | Hard | Easy |
| Cycle Time | Longer | Shorter |
| Common Use | Injection and die cast | Optics and contact lens |
Smart control of the pressure and deep-reach tools is needed for cavity molds. Molds need fast and smooth passes. For both, a high quality CNC polishing machine is useful. Most companies don’t need more than a 5-axis machine. Select on the machine the type of main mold you have.
How Does the CNC Polishing Machines Market Shape What You Buy?
Is it worthwhile to buy a computer numerical control polishing machine now? Yes. The market for CNC polishing machines is growing at a rate of 8 to 12 percent per year. Major consumers are electric vehicle headlights, augmented reality/virtual reality lenses and medical optics.
Now a Chinese manufacturer of CNC glass polishing machines just cut prices without sacrificing quality. Japanese and European manufacturers still dominate absolute accuracy. There are more options than ever before for these machines on the market. The bad news is that your expanded options do come with a higher risk. Shop with a purpose.
Which Industries Drive the Most Demand?
The use of optical sensors is on the rise in many areas. Each needs a different amount of smoothness.
- Automobile: Car headlights and LiDAR lenses require Ra < 0.01 µm.
- Surgical scopes are one of the medical devices which require a clean room.
- The camera lens molds require fast and high volume cycles in the electronics industry.
- Aircraft Infrared optic molds must be finished to the highest quality
Pros and Cons of a Growing Market for Buyers
Pros:
- More providers may drive down pricing.
- More money for research and development means better machines.
- More choices for custom CNC polishing machines
Cons:
- Brand-specific quality is harder to determine.
- Cheap machines could cut corners.
- Fast model upgrades mean lower resale value
Frequently Asked Questions
What is the difference between a conventional glass polishing machine and a CNC one?
The glass polishing machine is CNC (computer numerically controlled) and composed of a strong frame, a high temperature spindle and abrasives designed for the production of glass. These features are not present on a standard CNC polisher.
Uses softer, glass safe pads
Improved pressure control
Control of internal heat
How to choose a good company to supply my CNC polish machine?
Look for a machine manufacturer that is ISO certified and has a successful track record.
Request the course materials for a mock exam.
Check out available replacement parts and contact information for assistance.
Inquire about the possibility of a truly unique construction.
Can you justify the expense of a fully automated CNC polishing machine?
Well that works for a lot of work. An automated CNC polishing equipment will save you money on labor, increase productivity and decrease mistake rates.
Cost recovered in 12-24 months
Each batch produces the same
Keeps the night shift going
What is the market size of a CNC polishing machine?
The CNC polisher machines industry is worth billions of dollars. Annual growth is reported to be between 8 and 12 percent a year.
Asia has the highest number of machines.
The best areas are Japan and Europe.
North America is the global leader in aerospace and medical industries.
Are the machines for cavity molds and form molds different?
Both tasks can be done by software modifications of a special CNC polisher machine of 5 or 7 axes.
Higher initial costs
Floor space for cutting and changeover requirements
It is good for stores that have different molds.”
Seven, where to find the good cnc glass polishing machine manufacturer?
Choose a CNC glass polishing machine manufacturer who has good testing capability, optical know-how.
Note the spindle runout specs.
Look for actual Ra test results.
Reconfirm support for installation and training
Conclusion
Lens molds cannot be produced without CNC polishing equipment. They eliminate human error. Ra goals were met exactly. While running they don’t rest for hours. Now, the CNC polishing machines are available in a wider variety than before. Not all, the cheapest option isn’t the best. Think about your mold type, volume and quality objective when selecting a machine.
LongLi is a one stop solution for precision molds and CNC glass polishing machines. LongLi offers a wide range of automated and custom CNC polish machines, along with depth of optical knowledge and factory direct pricing. They are used in optical, cavity and form-mold applications in the medical, automotive and electronics industries.
